2-4 Day Turnaround and Cut-off Time:

Order and submit artwork before 4pm PST ships in 2-4 business day. Order after 4pm add 1 business day.

Same Day Turnaround:

Not available for this product.

Available Production Facility

Your orders are dispatched from the closest facility to your ship-to address for speed and savings

Store pickup only available in our California locations

Description

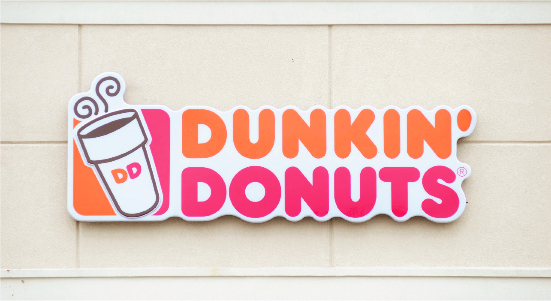

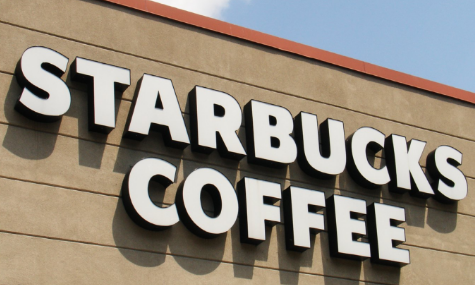

Channel Letters are 3 Dimensional Sign Elements. They are typically displayed on the facade of a building or monument sign. Channel letters are lit with LED modules which have effective light output and require very little electricity. Displaying channel letters is an intelligent way to showcase your brand in front of your customers.

• Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
• Certified: UL Listed with Sign Section Labels for Outdoor Installation
• 5 Year Warranty

Buying Options

Front Lit

Front and Back Lit

Material Options

Components

Trim Cap

Trim Caps are plastic molding that surrounds the acrylic face of your channel letter.

Specification

3/4" or 1" Jewelite Trim Caps

Return

Returns are the sides bordering the channel letter.

Specification

3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Returns

Download Return Color Chart

Face

Acrylic Faces is a slightly transparent plastic on the front face of your channel letter.

Specification

3/16" Acrylite, Chemcast Acrylic, Palsun Lexan Faces

Download Face Color Chart

Vinyl

If the color desired is unavailable from out acrylic faces, translucent colored vinyl films can be applied to the face of channel letters.

Specification

3M 3630 Translucent
3635 Day/Night Dual-Color
3635 Blockout Colored Vinyl (Vinyl Colors)
3M IJ8150 Clear Vinyl w/ 8520 Matte Lamination for Digital Print

Download Vinyl Color Chart

Standard Front Lit

Our standard Front lit channel letters include:

• 3/4" or 1" Trim Cap
• 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return and Backing
• 3/16 Acrylic Face
• LED Lights
• 3' Power cord for ground and power.
• Installation Guide and Mounting Pattern

Standard Front/Back Lit

Our standard Front/Back lit channel letters include:

• 3/4" or 1" Trim Cap
• 3" or 5" .040" Alumet, Metals USA High Reflective Aluminum Return
• 1/8" Palsun Clear Lexan Backs
• 3/16 Acrylic Face
• LED Lights
• 3' Power cord for ground and power.
• Installation Guide and Mounting Pattern

LED Lights

Specification

Mynice High Efficiency, 160° Beam, IP67, 9000K-10500K, 0.7W & 1.2W LED Module (5 Year Warranty)

Power Transformer

Specification

Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
* For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)

Installation Guide

Raceway

Specification

Size:

5.5" height and 3.5" depth
Customizable length from 10" to 46"
For wider applications, multiple segments are used to achieve the desired length

Accessories:

• Raceway base (each segment)
• Raceway cover (each segment)
• End caps x2 (each raceway)
• Connect plates x2 (each segment)
• Mounting brackets x4 (each segment)
• Self-tapping screws x20 (each segment)

Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.

Raceway Installation Guide:

• List out parts

• Assemble Raceway

• Put Hanger on

Warranty

5 Years Warranty

B2 Sign warrants that Front Lit Letters, Front & Back Lit Letters, Front Lit Logo Shapes Sign, and Front & Back Lit Logo Shapes Sign will be free from defects in materials and workmanship for a period of five (5) years from the date of shipment. Should there be a malfunction covered under this warranty, the buyer must notify B2 Sign prior to taking any action. To proceed with any work or repairs on signs under warranty without notifying B2 Sign automatically voids any warranty.

If the product proves defective during the warranty period, B2 Sign, at its option, will: (1) Repair the product, at no charge for parts or telephone/email support (2) Replace the product with an equivalent product which may be new or refurbished

B2 Sign tests and inspects all signs for proper operation prior to shipment. In addition, all signs are shipped in packaging that meets or exceeds industry standards for common carrier shipment. Therefore, it is the responsibility of the party receiving the shipment to inspect the packaging for any damage prior to accepting shipment. If packaging is damaged – inspect all contents for damages before signing. In the event that shipping damage is determined, it is the responsibility of the customer receiving the shipment to file a claim with the carrier and notify by email ChannelLetters@b2sign.com or call 1 (888) 739-8501 Any damages incurred between shipment from our plant and final destination will not be the responsibility of B2 Sign, but will fall on the carrier.

This warranty does not apply to damages resulting from acts of God, accidental negligence, vandalism or misuse. These warranties shall not apply to any defect, failure or damage caused by improper use, installation or care. B2 Sign shall not be obligated under this warranty.

The above warranties are given by B2 Sign with respect to this product and its related items in lieu of any other warranties, express or implied. It is the responsibility of B2 Sign to repair defective products and related items as the sole remedy provided to the customer for honor of this warranty.

FAQ

Q: How long is the turnaround for my Channel Letter order?

A: For standard channel letters and shapes between 16" to 24", orders will be completed within 2-4 business days. If vinyl is needed or your letters oversize this may extend your turnaround time.

Q: Do you have a price break down for different components and options?

A: Yes. The price sheet reflects automated quote calculated by the system. Please Note: Area(s) of your Text or Logos that are too small to be fabricated properly with Aluminum Returns may need to be altered before beginning production. This may incur additional charges and cause a delay on your completion time.

Q: What are the minimum and maximum production limit, cutout, stroke, spacing?

A: Shaped channel letter or light box: 58.5"x 136" Square or rectangle light box: 48" x 72", 36" x 96", 12" x 136", 24" x 136", 30" x 136" Rounded light box: 48" x 48" Oval light box: 48" x 72", 36" x 96", 12" x 136", 24" x 136", 30" x 136". Smallest stroke should be no less than 2". Please Note: Area(s) of your Text or Logos that are too small to be fabricated properly with Aluminum Returns may need to be altered before beginning production. This may incur additional charges and cause a delay on your completion time.

Q: What kind of art files should I submit?

A: All files submitted must be Vector and scaled to your specifications. The shape of the channel letter should also be simplified before uploading. Avoid uploading complex lettering or shapes. Convert all colors to CMYK for better color output. Please Note: B2sign does not guarantee color matching.

Q: Do you have any fastener suggestions?

A: Yes. This information is included with your installation guide along with your Channel letter order.

Q: Do you also have optional parts for installation?

A: Yes. Optional 2-Wire, 16G, 8-Foot, 3 Outlets, 120V Flat Plug Extension Cord can be ordered.

Q: How to quote logos/complex graphics?

A: Please see details at Upload Image Steps .

Manual

Channel Letter User Manual
